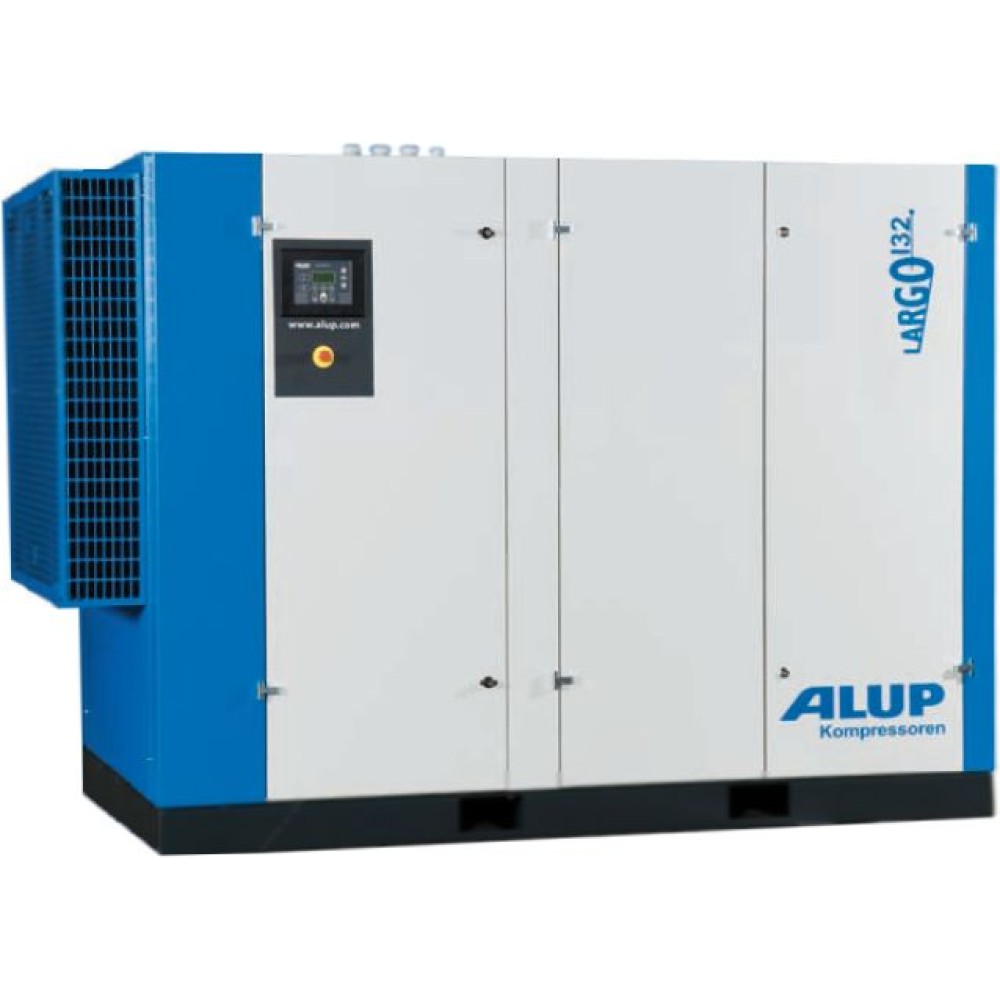

Compresoare cu surub - gama LARGO
Compresoare cu surub - gama LARGO
- Producător ALUP
- Disponibilitate: Out Of Stock
- Model: LARGO
Cerere de oferta
Compresoare surub LARGO - clasa de putere: 11-400 kW
Avantajele gamei LARGO
- Echipamentele din seria Largo ofera debite de aer intre 1.2 si 51.61 m³/min la presiuni de 7.5, 8, 10 si 13 bar.
- Unitatile sunt disponibile in versiuni racite cu aer (11-250 kW) si racite cu apa (30-400 kW)
| Tip | Debit aer conform ISO 1217 |
Putere Motor kW |
Dimensiuni Lxlxh mm |
Masa kg | |||
|
7.5 bar (m³/min) |
8 bar (m³/min) |
10 bar (m³/min) |
13 bar (m³/min) | ||||
| Largo 11 | 1.93 | 1.83 | 1.52 | 1.20 | 11 | 1300x780x1555 | 460 |
| Largo 15 | 2.70 | 2.48 | 2.20 | 1.82 | 15 | 1300x780x1555 | 470 |
| Largo 19 | 3.28 | 3.17 | 2.70 | 2.32 | 18.5 | 1300x780x1555 | 490 |
| Largo 22 | 3.78 | 3.67 | 3.23 | 2.82 | 22 | 1300x780x1555 | 496 |
| Largo 30 | 4.60 | 4.55 | 4.27 | 3.68 | 30 | 1300x780x1555 | 542 |
| Largo 31 | 5.58 | 5.27 | 4.68 | 3.83 | 30 | 1810x950x1760 | 815 |
| Largo 37 | 6.90 | 6.63 | 5.88 | 4.68 | 37 | 1810x950x1760 | 900 |
| Largo 45 | 8.03 | 7.87 | 7.20 | 6.00 | 45 | 1810x950x1760 | 975 |
| Largo 55 | 9.48 | - | 8.47 | 7.27 | 55 | 1810x950x1760 | 1165 |
| Largo 56 | 1.62 | 10.20 | 8.93 | 7.22 | 55 | 2100x1060x1600 | 1430 |
| Largo 75 | 14.70 | 13.90 | 12.37 | 10.48 | 75 | 2100x1060x1600 | 1500 |
| Largo 90 | 16.08 | 16.06 | 14.67 | 11.87 | 90 | 2100x1060x1600 | 1625 |
| Largo 110 | 19.58 | 18.98 | 17.08 | 14.67 | 110 | 2100x1060x1600 | 1810 |
| Largo 111 | 20.23 | 19.52 | 17.25 | 13.63 | 110 | 1800x710x1170 | 2420 |
| Largo 132 | 24.50 | 23.20 | 21.08 | 17.08 | 132 | 1800x710x1170 | 2565 |
| Largo 160 | 28.61 | 27.35 | 24.83 | 20.67 | 160 | 1800x710x1170 | 2830 |
| Largo 200 | 29.25 | 29.25 | 28.59 | 24.00 | 200 | 1800x710x1170 | 3550 |
| Largo 201 | 36.00 | 36.00 | 32.00 | 36.14 | 200 | 1800x710x1170 | 3900 |
| Largo 250 | 43.55 | 43.55 | 38.70 | 32.87 | 250 | 1800x710x1170 | 4050 |
| Largo 315 W | 52.50 | 52.50 | 45.10 | 39.78 | 315 | 1800x710x1170 | 4350 |
| Largo 355 W | 61.66 | 61.66 | 52.70 | - | 335 | 1800x710x1170 | 5750 |
| Largo 400 W | 65.94 | 65.94 | 58.41 | - | 400 | 1800x710x1170 | 5900 |
